AP9971GI-HF - N-Channel 60V MOSFET

AP9971GI-HF Description

AP9971GI-HF-VB AP9971GI-HF-VB Datasheet N-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd .

AP9971GI-HF Features

* Isolated Package
* High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
* Sink to Lead Creepage Distance = 4.8 mm
* 175 °C Operating Temperature
* Dynamic dV/dt Rating
* Low Thermal Resistance
* Lead (Pb)-free Available RoHS COMPLIANT D

📥 Download Datasheet

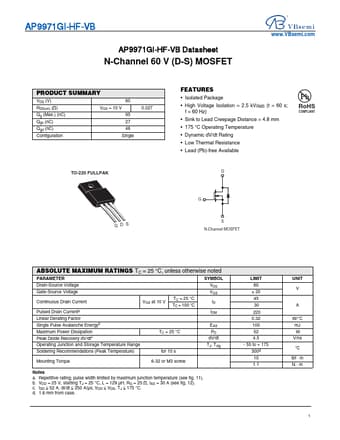

Preview of AP9971GI-HF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP9971GI-HF
Manufacturer
VBsemi
File Size
1.05 MB
Datasheet
AP9971GI-HF-VBsemi.pdf
Description
N-Channel 60V MOSFET
