AP9980GM-HF - N-Channel 80V MOSFET

AP9980GM-HF Description

AP9980GM-HF-VB www.VBsemi.com AP9980GM-HF-VB Datasheet N-Channel 80 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 80 0.062 at VGS = 10 V .

AP9980GM-HF Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg and UIS Tested

AP9980GM-HF Applications

* DC/DC Conversion - Notebook System Power S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 D1 D2 G1 G2 S1 S2 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TA=25°C TA=7

📥 Download Datasheet

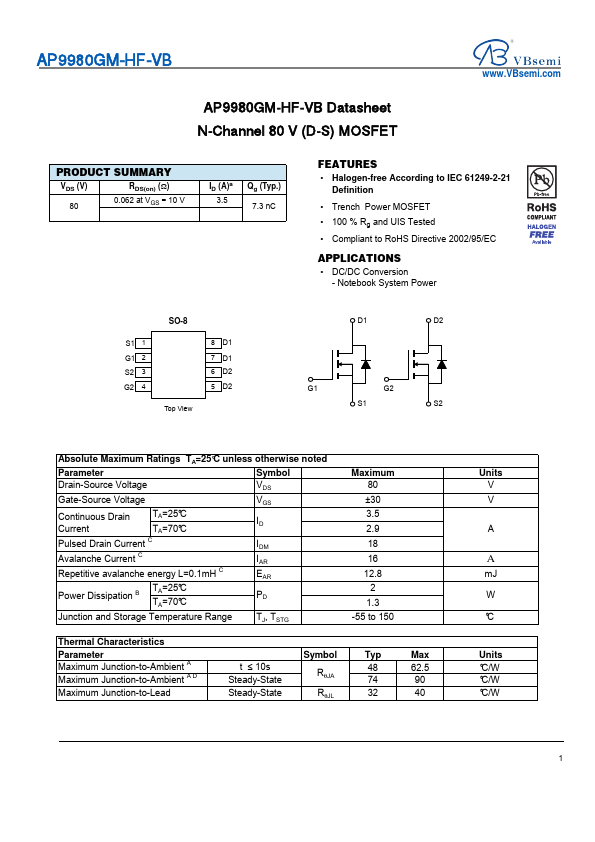

Preview of AP9980GM-HF PDF

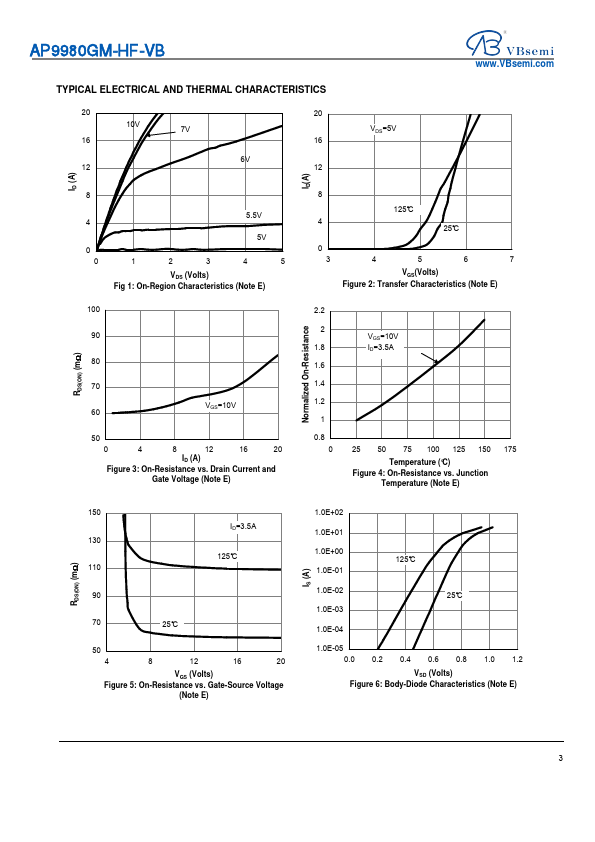

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP9980GM-HF
Manufacturer
VBsemi
File Size
272.02 KB
Datasheet
AP9980GM-HF-VBsemi.pdf
Description
N-Channel 80V MOSFET
