AP9974GP N-Channel 60-V MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

AP9974GP-VB AP9974GP-VB Datasheet N-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 60 0.011 at VGS = 10 V 0.013 at VGS = 4.5 V .

📥 Download Datasheet

Preview of AP9974GP PDF

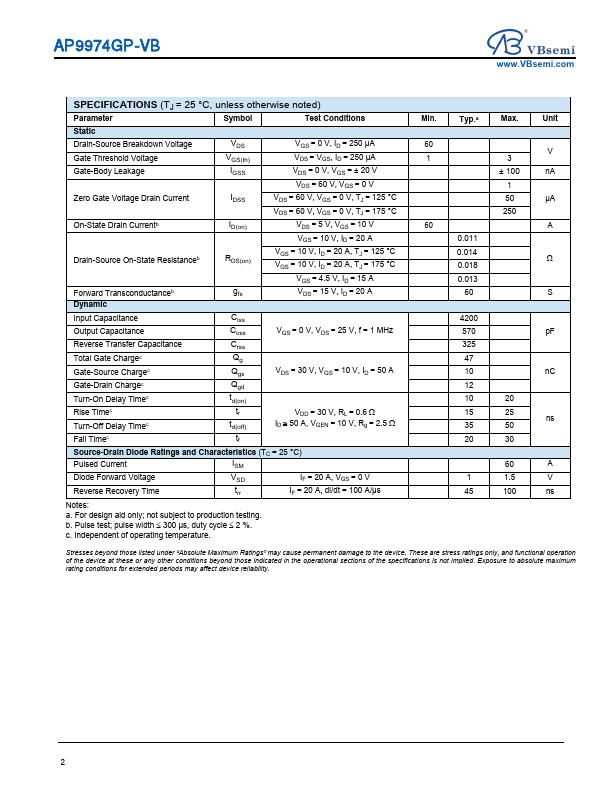

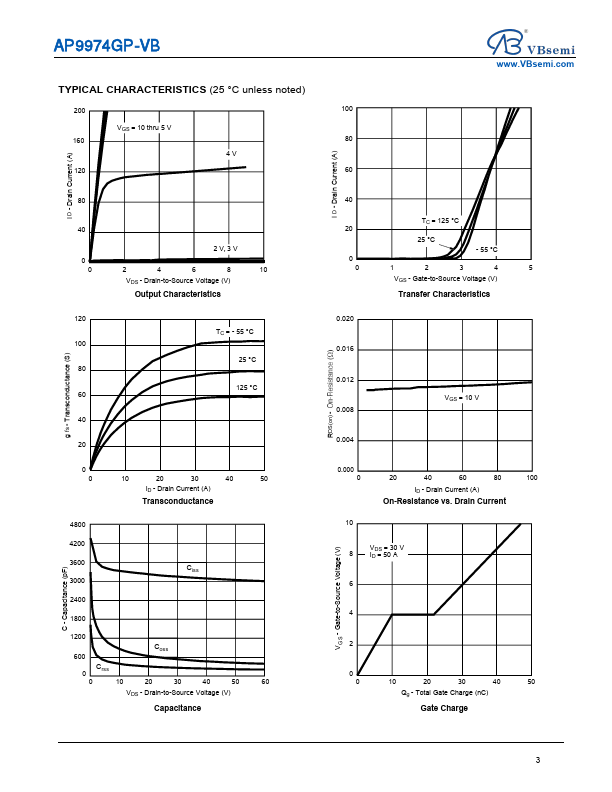

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AP9974GP
Manufacturer
VBsemi
File Size
226.30 KB
Datasheet
AP9974GP-VBsemi.pdf
Description
N-Channel 60-V MOSFET

Features

* 175 °C Junction Temperature
* Trench Power MOSFET
* Material categorization: D G S N-Channel MOSFET www. VBsemi. com ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continuous Drain Current (T
