AP9974AGP - N-Channel 60V MOSFET

AP9974AGP Description

AP9974AGP-VB AP9974AGP-VB Datasheet N-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 60 0.011 at VGS = 10 V 0.013 at VGS = 4.5 V.

AP9974AGP Features

* 175 °C Junction Temperature
* Trench Power MOSFET
* Material categorization: D G S N-Channel MOSFET www. VBsemi. com ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continuous Drain Current (T

📥 Download Datasheet

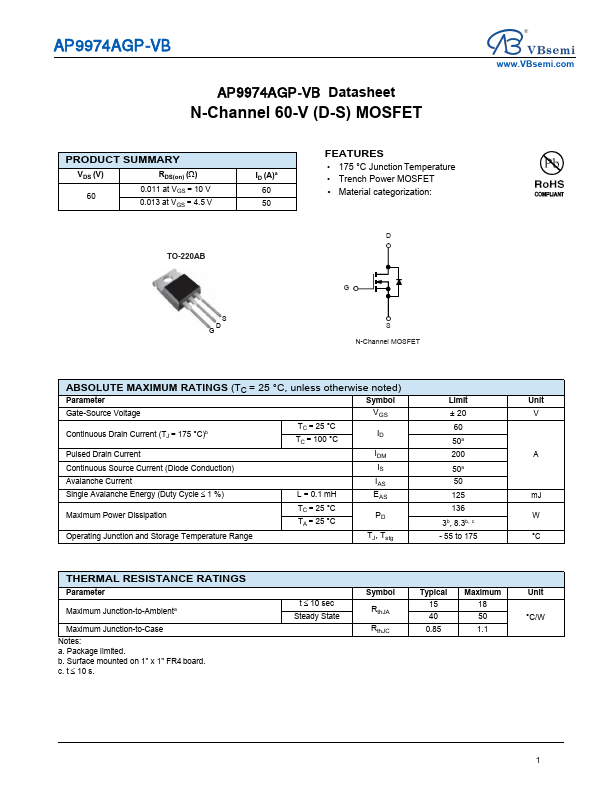

Preview of AP9974AGP PDF

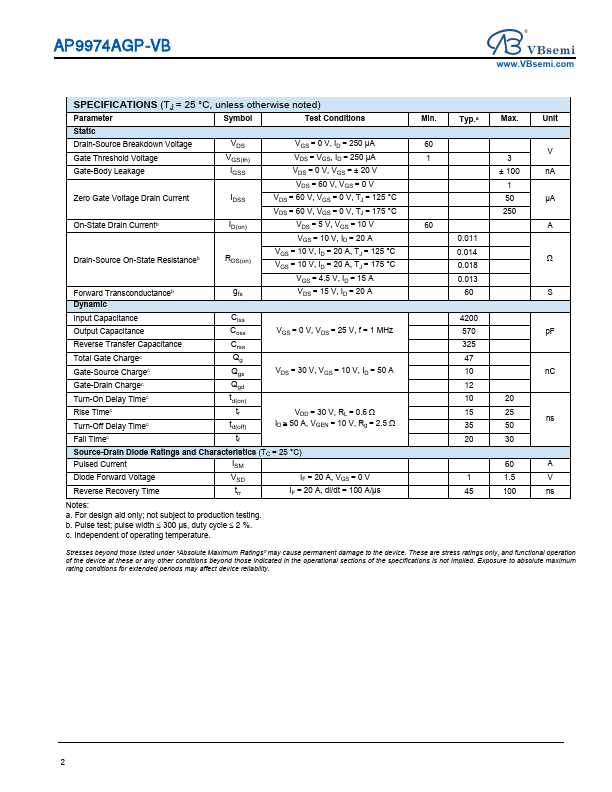

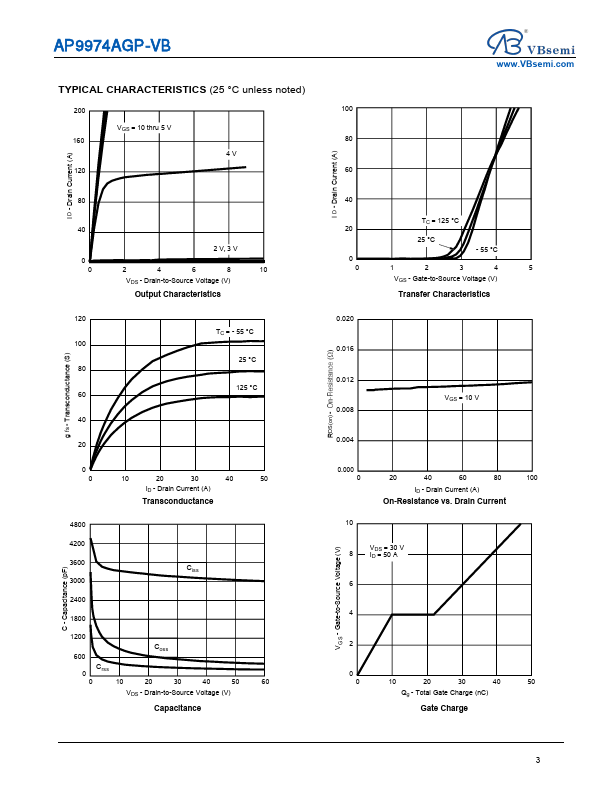

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP9974AGP
Manufacturer
VBsemi
File Size
226.33 KB
Datasheet
AP9974AGP-VBsemi.pdf
Description
N-Channel 60V MOSFET
