AP9994GP-HF N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP9994GP-HF Description

AP9994GP-HF Halogen-Free Product Advanced Power Electronics Corp.▼ Simple Drive Requirement ▼ Lower On-resistance ▼ Fast Switching Characteristic ▼ .
AP9994 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching p.

AP9994GP-HF Applications

* The TO-220 package is widely preferred for all commercialindustrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. G D S TO-220(P) Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ PD@TA=

📥 Download Datasheet

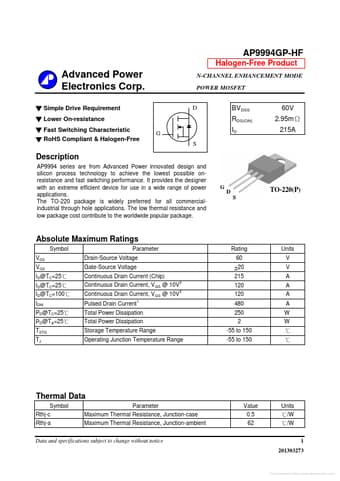

Preview of AP9994GP-HF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP9994GP-HF
Manufacturer
Advanced Power Electronics
File Size
80.59 KB
Datasheet
AP9994GP-HF_AdvancedPowerElectronics.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
