MS2200 RF AND MICROWAVE TRANSISTORS UHF PULSED APPLICATIONS

The MS2200 is a hermetically sealed, gold metallized silicon NPN DataSheet4U.com pulse power transistor mounted in a common base balanced configuration. The MS2200 is designed for applications requiring high peak power and low duty cycles within the frequency range of 400 * 500 MHz. DataSh.

MS2200 Features

* 500 Watts @ 250 µ Sec Pulse Width, 10% Duty Cycle Refractory Gold Metallization Emitter Ballasting And Low Resistance For Reliability and Ruggedness Infinite VSWR Capability At Specified Operating Conditions Input Matched, Common Base Confi

MS2200 Datasheet (374.58 KB)

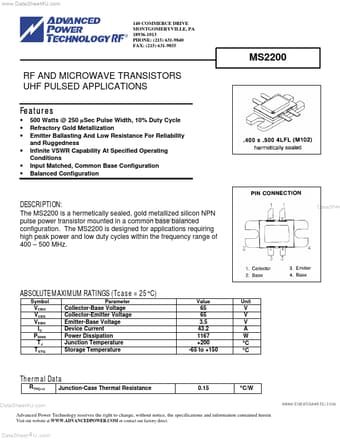

MS2200 Datasheet Preview — Preview of MS2200 PDF

Datasheet Details

Part number:

MS2200

Manufacturer:

Advanced Power Technology

File Size:

374.58 KB

Description:

Rf and microwave transistors uhf pulsed applications.
