1N415E SILICON MIXER DIODE

📥 Download Datasheet Datasheet Preview Page 1

Description

1N415E SILICON MIXER DIODE .
The ASI 1N415E is a Silicon Mixer Diode Designed for Applications Operating From 8. High bur.

📥 Download Datasheet

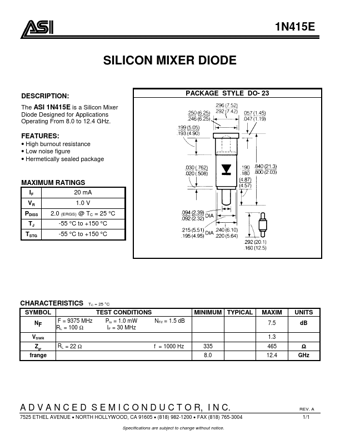

Preview of 1N415E PDF

Datasheet Specifications

Part number
1N415E
Manufacturer
Advanced Semiconductor
File Size
15.94 KB
Datasheet
1N415E_AdvancedSemiconductor.pdf
Description
SILICON MIXER DIODE

Features

* High burnout resistance
* Low noise figure
* Hermetically sealed package MAXIMUM RATINGS IF VR PDISS TJ TSTG 20 mA 1.0 V 2.0 (ERGS) @ TC = 25 °C -55 °C to +150 °C -55 °C to +150 °C NONE CHARACTERISTICS SYMBOL NF VSWR ZIF frange RL = 22 Ω TC = 25 °C TEST CONDITIONS F =
