HF125-28 Datasheet, Transistor, Advanced Semiconductor

HF125-28 Features

  • Transistor
  • PG = 15 dB min. at 100 W/30 MHz
  • IMD3 = -30 dBc max. at 100 W (PEP)
  • Omnigold™ Metalization System C B E C Ø.125 NOM. B D G F E E H MAXIMUM RATINGS I

PDF File Details

Part number:

HF125-28

Manufacturer:

Advanced Semiconductor

File Size:

18.49kb

Download:

📄 Datasheet

Description:

Npn silicon rf power transistor. The ASI HF125-28 is Designed for PACKAGE STYLE .500 4L FLG .112x45° A FULL R L FEATURES:

  • PG = 15 dB min. at 100 W/30 MHz

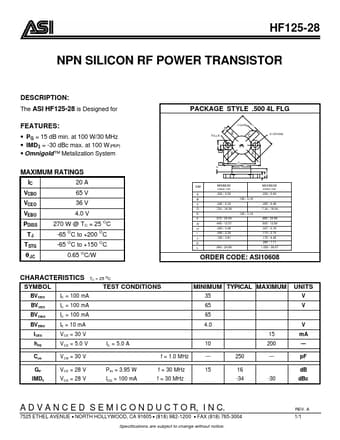

  • Datasheet Preview: HF125-28 📥 Download PDF (18.49kb)
