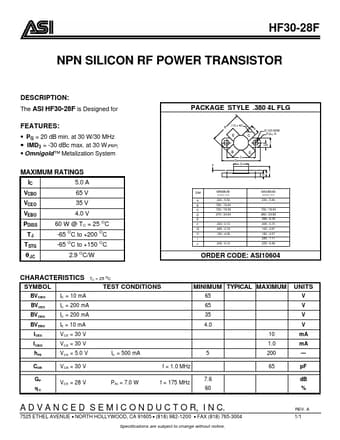

HF30-28F Datasheet, Transistor, Advanced Semiconductor

HF30-28F Features

• Transistor
• PG = 20 dB min. at 30 W/30 MHz
• IMD3 = -30 dBc max. at 30 W (PEP)
• Omnigold™ Metalization System F E B C D E C E Ø.125 NOM. FULL R J .125 MAXIMUM RATING

PDF File Details

Part number:

HF30-28F

Manufacturer:

Advanced Semiconductor

File Size:

18.33kb

Download:

📄 Datasheet

Description:

Npn silicon rf power transistor. The ASI HF30-28F is Designed for PACKAGE STYLE .380 4L FLG B .112 x 45° A FEATURES:

PG = 20 dB min. at 30 W/30 MHz
