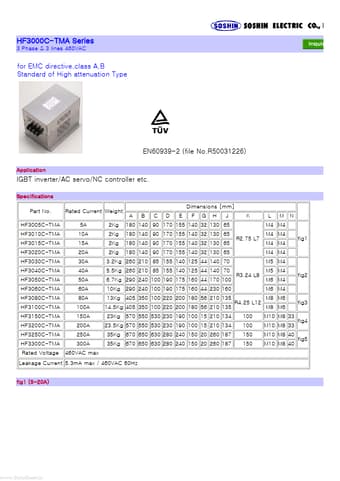

HF3000C-TMA Datasheet - Soshin

HF3000C-TMA IGBT inverter

HF3000C-TMA Series 3 Phase & 3 lines 460VAC for EMC directive,class A,B Standard of High attenuation Type EN60939-2 (file No.R50031226) Application IGBT inverter/AC servo/NC controller etc. Specifications Part No. HF3005C-TMA HF3010C-TMA HF3015C-TMA HF3020C-TMA HF3030C-TMA HF3040C-TMA HF3050C-TMA HF3060C-TMA HF3080C-TMA HF3100C-TMA HF3150C-TMA HF3200C-TMA HF3250C-TMA HF3300C-TMA Rated Voltage Rated Current Weight 5A 10A 15A 20A 30A 40A 50A 60A 80A 100A 150A 200A 250A 300A 460VAC max 2Kg 2Kg 2.

HF3000C-TMA Datasheet (182.66 KB)
