HF3000C-XO Datasheet - Soshin

HF3000C-XO IGBT inverter

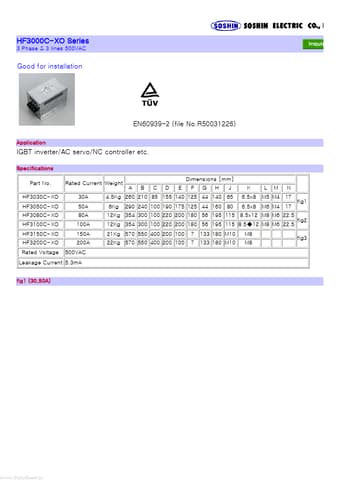

HF3000C-XO Series 3 Phase & 3 lines 500VAC Good for installation EN60939-2 (file No.R50031226) Application IGBT inverter/AC servo/NC controller etc. Specifications Part No. HF3030C-XO HF3050C-XO HF3080C-XO HF3100C-XO HF3150C-XO HF3200C-XO Rated Voltage Rated Current Weight 30A 50A 80A 100A 150A 200A 500VAC Dimensions [mm] A B C D E F G H J K L M N fig1 fig2 fig3 6.5x8 M5 M4 17 6.5x8 M6 M4 17 4.5Kg 260 210 85 155 140 125 44 140 65 6Kg 290 240 100 190 175 125 44 160 80 12Kg 354 300 100 220 20.

HF3000C-XO Datasheet (243.88 KB)
