HF3000C-XZ Datasheet - Soshin

HF3000C-XZ IGBT inverter

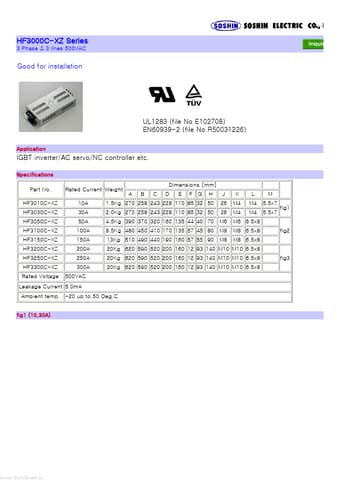

HF3000C-XZ Series 3 Phase & 3 lines 500VAC Good for installation UL1283 (file No.E102708) EN60939-2 (file No.R50031226) Application IGBT inverter/AC servo/NC controller etc. Specifications Part No. HF3010C-XZ HF3030C-XZ HF3050C-XZ HF3100C-XZ HF3150C-XZ HF3200C-XZ HF3250C-XZ HF3300C-XZ Rated Voltage Rated Current Weight 10A 30A 50A 100A 150A 200A 250A 300A 500VAC Dimensions [mm] A B C D E F G H J 26 26 M6 M8 M8 K M4 M4 L M4 M4 M 5.5x7 5.5x7 fig1 1.5Kg 270 258 243 228 110 85 32 50 2.0Kg 270 25.

HF3000C-XZ Datasheet (190.21 KB)
