MRF892 Datasheet, Transistor, Advanced Semiconductor

MRF892 Features

  • Transistor
  • Internal Input Matching Network
  • PG =8.5 dB at 14 W/900 MHz
  • Omnigold™ Metalization System MAXIMUM RATINGS IC VCBO VCEO VEBO PDISS TJ TSTG θJC 2.5 A DIM MI

PDF File Details

Part number:

MRF892

Manufacturer:

Advanced Semiconductor

File Size:

176.82kb

Download:

📄 Datasheet

Description:

Npn silicon rf power transistor. The ASI MRF892 is Designed for Class AB, Cellular Base Station Applications up to 900 MHz. PACKAGE STYLE .230 6L FLG A .040x45° 4X

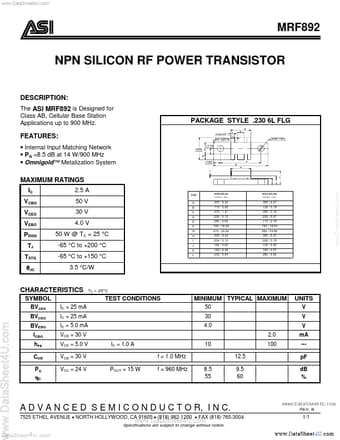

Datasheet Preview: MRF892 📥 Download PDF (176.82kb)

MRF892 Application

  • Applications up to 900 MHz. PACKAGE STYLE .230 6L FLG A .040x45° 4X .025 R .115 .430 D E .125 G H I L F C B 2XØ.130 FEATURES:
  • Internal I

TAGS

MRF892
NPN
SILICON
POWER
TRANSISTOR
Advanced Semiconductor
