MRF891 Datasheet - Motorola

MRF891 RF POWER TRANSISTORS

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF891/D The RF Line NPN Silicon RF Power Transistors . . . designed for 24 volt UHF large signal, common emitter amplifier applications in industrial and commercial FM equipment operating in the range of 800 960 MHz. Specified 24 Volt, 900 MHz Characteristics Output Power = 5.0 Watts Power Gain = 9.0 dB Min Efficiency = 50% Min Series Equivalent Large Signa.

MRF891_Motorola.pdf

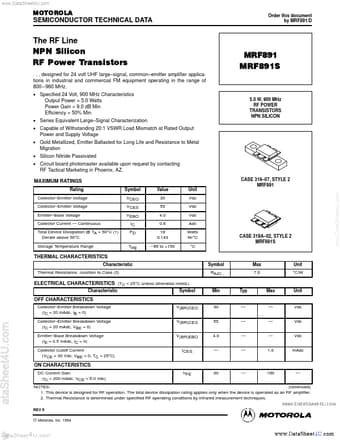

Preview of MRF891 PDF
MRF891 Datasheet Preview Page 2 MRF891 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF891

Manufacturer:

Motorola

File Size:

253.43 KB

Description:

Rf power transistors.
