MRF897 Datasheet - Motorola

MRF897 - RF POWER TRANSISTOR

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF897/D The RF Line NPN Silicon RF Power Transistor Designed for 24 Volt UHF large signal, common emitter, class AB linear amplifier applications in industrial and commercial FM/AM equipment operating in the range 800 970 MHz.

Specified 24 Volt, 900 MHz Characteristics Output Power = 30 Watts Minimum Gain = 10 dB @ 900 MHz, class AB Minimum Efficiency = 30% @ 900 MHz,

MRF897 Features

* Inc. Motorola, Inc. is an Equal Opportunity/Affirmative Action Employer. Literature Distribution Centers: USA: Motorola Literature Distribution; P.O. Box 20912; Phoenix, Arizona 85036. EUROPE: Motorola Ltd.; European Literature Centre; 88 Tanners Drive, Blakelands, Milton Keynes, MK14 5BP, England.

MRF897_Motorola.pdf

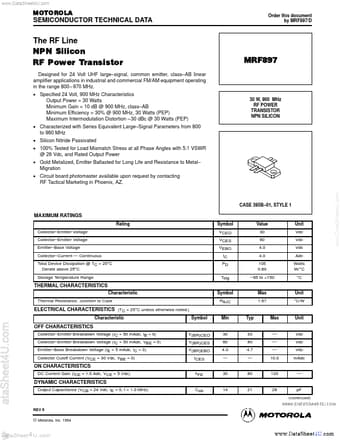

Preview of MRF897 PDF
MRF897 Datasheet Preview Page 2 MRF897 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF897

Manufacturer:

Motorola

File Size:

285.21 KB

Description:

Rf power transistor.
