ACT4808DI

The ACT4808DI is DUAL TRANSCEIVER designed by Aeroflex Circuit Technology.

Product Overview

Aeroflex Circuit Technology

Datasheet Details

Part number	ACT4808DI
Manufacturer	Aeroflex Circuit Technology
File Size	106.11 KB
Description	DUAL TRANSCEIVER
Datasheet	ACT4808DI_AeroflexCircuitTechnology.pdf

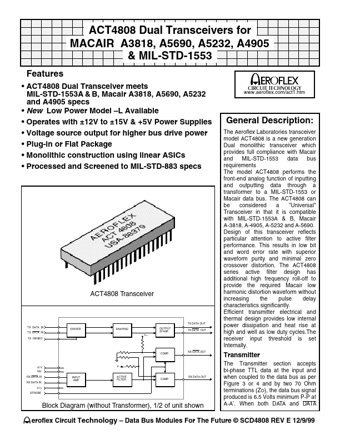

Additional preview pages of the ACT4808DI datasheet.

Product details

Description

The Aeroflex Laboratories transceiver model ACT4808 is a new generation Dual monolithic transceiver which provides full compliance with Macair and MIL-STD-1553 data bus requirements The model ACT4808 performs the front-end analog function of inputting and outputting data through a transformer to a MIL-STD-1553 or Macair data bus.

Features

ACT4808 Dual Transceiver meets MIL-STD-1553A & B, Macair A3818, A5690, A5232 and A4905 specs.
New Low Power Model.
L Available.
Operates with ±12V to ±15V & +5V Power Supplies.
Voltage source output for higher bus drive power.
Plug-in or Flat Package.
Monolithic construction using linear ASICs.
Processed and Screened to MIL-STD-883 specs www. aeroflex. com/act1.htm.
