UT54ACS27 Datasheet - Aeroflex Circuit Technology

Triple 3-Input NOR Gates

UT54ACS27 General Description

The UT54ACS27 and the UT54ACTS27 are triple, three-input NOR gates. The circuits perform the Boolean functions Y = A+B+C or Y = A⋅B⋅C in positive logic. The devices are characterized over full military temperature range of -55°C to +125°C. FUNCTION TABLE INPUTS OUTPUT ABCY HXX L XHX L XXHL L.

UT54ACS27 Datasheet (220.00 KB)

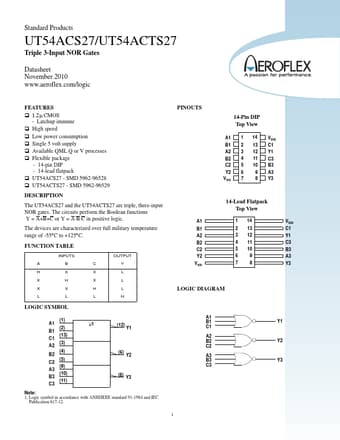

Preview of UT54ACS27 PDF

Datasheet Details

Part number:

UT54ACS27

Manufacturer:

Aeroflex Circuit Technology

File Size:

220.00 KB

Description:

Triple 3-input nor gates.
