UT54ACS273E Datasheet - Aeroflex Circuit Technology

Octal D-Flip-Flops

UT54ACS273E Features

* Contains eight flip-flops with single-rail outputs

* Buffered clock and direct clear inputs

* Individual data input to each flip-flop

* Applications include: - Buffer/storage registers, shift registers and pattern generators

* 0.6μm CRH CMOS process - Latchu

UT54ACS273E General Description

The UT54ACS273E is a performance and voltage enhanced version of the UT54ACS273 positive-edge-triggered D-type flip-flop with a direct clear input. Information at the D inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse. When the.

UT54ACS273E Datasheet (109.63 KB)

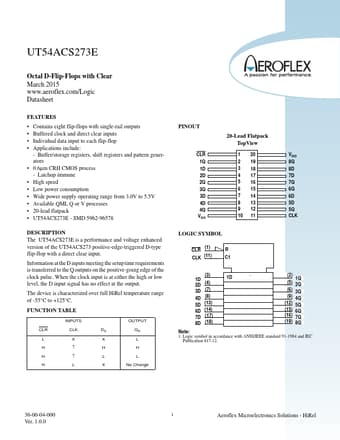

UT54ACS273E Datasheet Preview — Preview of UT54ACS273E PDF

Datasheet Details

Part number:

UT54ACS273E

Manufacturer:

Aeroflex Circuit Technology

File Size:

109.63 KB

Description:

Octal d-flip-flops.
