UT54ACS279 Datasheet - Aeroflex Circuit Technology

Quadruple S-R Latches

UT54ACS279 General Description

The UT54ACS279 and the UT54ACTS279 contain four basic S-R flip-flop latches. Under conventional operation, the S-R inputs are normally held high. When the S input is pulsed low, the Q output will be set high. When R is pulsed low, the Q output will be reset low. If the S-R inputs are taken low simul.

UT54ACS279 Datasheet (224.92 KB)

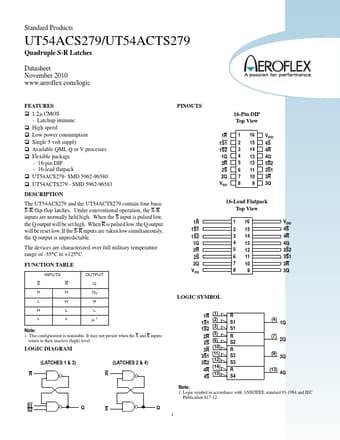

Preview of UT54ACS279 PDF

Datasheet Details

Part number:

UT54ACS279

Manufacturer:

Aeroflex Circuit Technology

File Size:

224.92 KB

Description:

Quadruple s-r latches.
