MSW2020-202

Surface Mount PIN Diode

MSW2020-202 Features

* Surface Mount SP2T Switch in Compact Outline: 8mm L x 5mm W x 2.5 mm H

* Higher Average Power Handling than Plastic ( 158 W C.W.)

* Higher Voltage > 800 Volts for Higher RF Peak Power ( 500 W )

* Lower Insertion Loss ( 0.3 dB ) & Higher IIP3 ( 60 dBm )

* Ope

MSW2020-202 General Description

The MSW2020-202 Silicon PIN Diode, Surface Mount SP2T T-R Switch is manufactured using Aeroflex / Metelics proven hybrid manufacturing process incorporating High Voltage PIN Diodes and passive devices integrated within a ceramic substrate. This low profile, compact, surface mount component, (8mm L x.

MSW2020-202 Datasheet (192.15 KB)

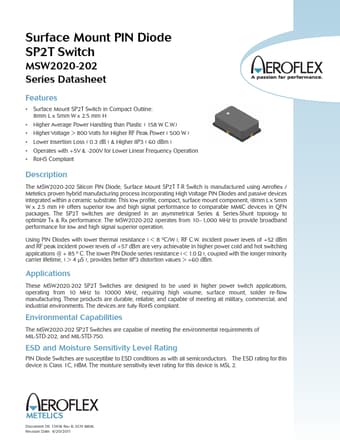

Preview of MSW2020-202 PDF
