MSW2002-200 SP2T PIN Diode Switch

The MSW200x-200 series of surface mount silicon PIN diode SP2T switches handle high power signals from 50 MHz to 1 GHz (MSW2000), 400 MHz to 4 GHz (MSW2001) and 2 to 6 GHz (MSW2002), in transmit-receive (TR), active receiver protection and other applications. This series is manufactured using a prov.

MSW2002-200 Features

* Wide Frequency Range: 50 MHz to 6 GHz, in 3 bands

* Surface Mount SP2T Switch in Compact Outline: 8 mm L x 5 mm W x 2.5 mm H

* Higher Average Power Handling than Plastic Packaged

* MMIC Switches: 125 W CW

* High RF Peak Power: 500 W

* Low Insertion Loss: 0.25 dB

* High

MSW2000-200-MA-COM.pdf

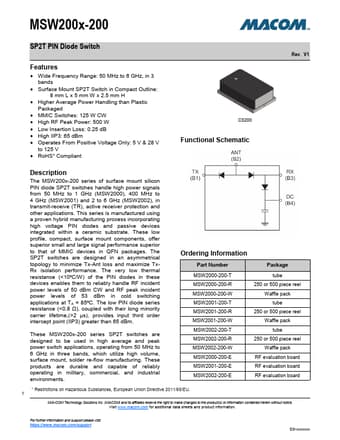

MSW2002-200 Datasheet Preview — This datasheet PDF includes multiple part numbers: MSW2002-200, MSW2000-200-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MSW2002-200, MSW2000-200-MA

Manufacturer:

MA-COM

File Size:

1.52 MB

Description:

Sp2t pin diode switch.

Note:

This datasheet PDF includes multiple part numbers: MSW2002-200, MSW2000-200-MA.
Please refer to the document for exact specifications by model.
