MSW2022-202

SP2T PIN Diode Switch

MSW2022-202 Features

* Wide Frequency Range: 50 MHz to 1 GHz

* Surface Mount SP2T Switch in Compact Outline: 8 mm L x 5 mm W x 2.5 mm H

* Higher Average Power Handling than Plastic Packaged MMIC Switches: 150 W CW

* High RF Peak Power: 500 W

* Low Insertion Loss: 0.3 dB

* High IIP3: 60 dBm

MSW2022-202 General Description

The MSW2022-202 surface mount silicon PIN diode SP2T switch handles high power signals from 50 MHz to 1 GHz in transmit-receive (TR), active receiver protection and other applications. This switch module is manufactured using a proven hybrid manufacturing process incorporating high voltage PIN diode.

MSW2022-202 Datasheet (933.50 KB)

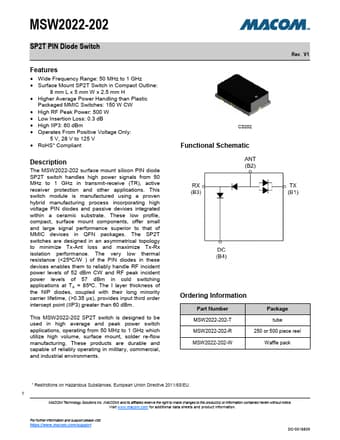

Preview of MSW2022-202 PDF

Datasheet Details

Part number:

MSW2022-202

Manufacturer:

MACOM

File Size:

933.50 KB

Description:

Sp2t pin diode switch.
