MSW2000-200

SP2T PIN Diode Switch

MSW2000-200 Features

* Wide Frequency Range: 50 MHz to 6 GHz, in 3 bands

* Surface Mount SP2T Switch in Compact Outline: 8 mm L x 5 mm W x 2.5 mm H

* Higher Average Power Handling than Plastic Packaged

* MMIC Switches: 125 W CW

* High RF Peak Power: 500 W

* Low Insertion Loss: 0.25 dB

* High

MSW2000-200 General Description

The MSW200x-200 series of surface mount silicon PIN diode SP2T switches handle high power signals from 50 MHz to 1 GHz (MSW2000), 400 MHz to 4 GHz (MSW2001) and 2 to 6 GHz (MSW2002), in transmit-receive (TR), active receiver protection and other applications. This series is manufactured using a prov.

MSW2000-200 Datasheet (1.52 MB)

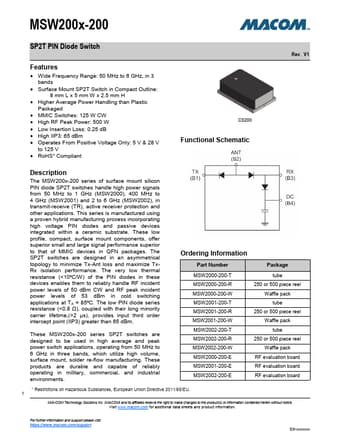

Preview of MSW2000-200 PDF

Datasheet Details

Part number:

MSW2000-200

Manufacturer:

MA-COM

File Size:

1.52 MB

Description:

Sp2t pin diode switch.
