MSW2031-203 - Surface Mount PIN Diode

Product Overview

Aeroflex

Datasheet Details

Part number	MSW2031-203
Manufacturer	Aeroflex
File Size	531.14 KB
Description	Surface Mount PIN Diode
Datasheet	MSW2031-203 Datasheet
Note	This datasheet PDF includes multiple part numbers: MSW2031-203, MSW2030-203. Please refer to the document for exact specifications by model.
Additional preview pages of the MSW2031-203 datasheet.

Product details

Description

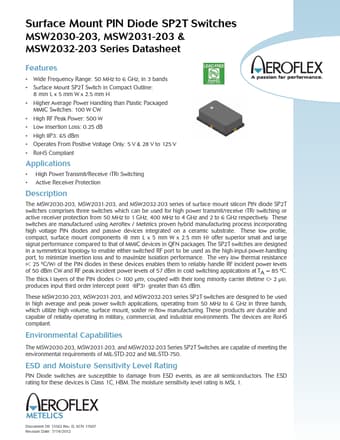

The MSW2030-203, MSW2031-203, and MSW2032-203 series of surface mount silicon PIN diode SP2T switches comprises three switches which can be used for high power transmit/receive (TR) switching or active receiver protection from 50 MHz to 1 GHz, 400 MHz to 4 GHz and 2 to 6 GHz respectively.

Features

Wide Frequency Range: 50 MHz to 6 GHz, in 3 bands.
Surface Mount SP2T Switch in Compact Outline: 8 mm L x 5 mm W x 2.5 mm H.
Higher Average Power Handling than Plastic Packaged MMIC Switches: 100 W CW.
High RF Peak Power: 500 W.
Low Insertion Loss: 0.25 dB.
High IIP3: 65 dBm.
Operates From Positive Voltage Only: 5 V & 28 V to 125 V.
RoHS Compliant.
