AA87221AP - CCD VERTICAL DRIVER

Agamem Microelectronic

AA87221AP Datasheet Preview — Preview of AA87221AP PDF

Datasheet Details

Part number	AA87221AP
Manufacturer	Agamem Microelectronic
File Size	317.52 KB
Description	CCD VERTICAL DRIVER
Datasheet	AA87221AP_AgamemMicroelectronic.pdf

AA87221AP Product details

Description

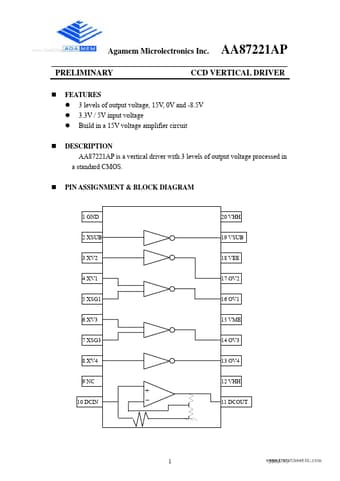

AA87221AP is a vertical driver with 3 levels of output voltage processed in a standard CMOS. 1 GND 2 XSUB 3 XV2 4 XV1 5 XSG1 6 XV3 7 XSG3 8 XV4 9 NC 20 VHH 19 VSUB 18 VEE 17 OV2 16 OV1 15 VME 14 OV3 13 OV4 12 VHH + 10 DCIN 11 DCOUT 1 2006/7/5 www.DataSheet4U.com Agamem Microlectronics Inc.AA87221AP ___________________________________________________________ PRELIMINARY CCD VERTICAL DRIVER PIN DESCRIPTION Symbol POWER VHH GN

Features

S z 3 levels of output voltage, 15V, 0V and -8.5V z 3.3V / 5V input voltage z Build in a 15V voltage amplifier circuit.
