AA87223AP - CCD VERTICAL DRIVER

The AA87223AP is a vertical driver for CCD image sensors, with 3 levels of output voltage processed in a standard CMOS.

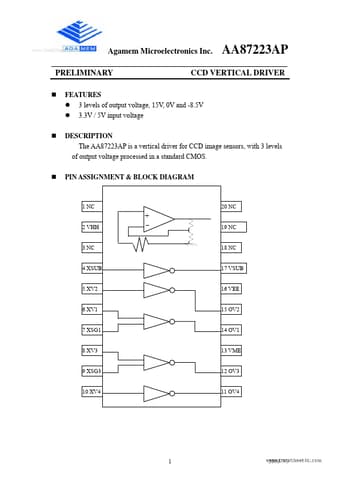

PIN ASSIGNMENT & BLOCK DIAGRAM * * 1 NC 20 NC + 2 VHH 3 NC 4 XSUB 5 XV2 6 XV1 7 XSG1 8 XV3 9 XSG3 10 XV4 * 19 NC 18 NC 17 VSUB 16 VEE 15 OV2 14 OV1 1

Datasheet Details

AA87223AP

Agamem Microelectronic

313.97 KB

Ccd vertical driver.
