AA87222AP - CCD VERTICAL DRIVER

Agamem Microelectronic

AA87222AP Datasheet Preview — Preview of AA87222AP PDF

Datasheet Details

Part number	AA87222AP
Manufacturer	Agamem Microelectronic
File Size	156.70 KB
Description	CCD VERTICAL DRIVER
Datasheet	AA87222AP_AgamemMicroelectronic.pdf

AA87222AP Product details

Description

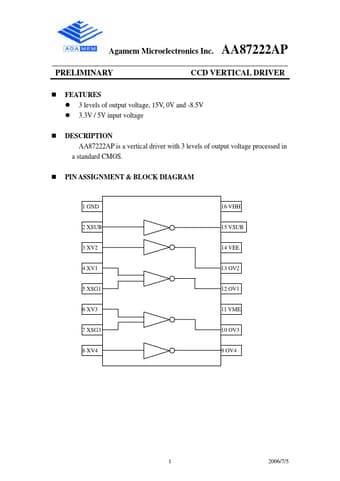

AA87222AP is a vertical driver with 3 levels of output voltage processed in a standard CMOS. PIN ASSIGNMENT & BLOCK DIAGRAM 1 GND 2 XSUB 3 XV2 4 XV1 5 XSG1 6 XV3 7 XSG3 8 XV4 16 VHH 15 VSUB 14 VEE 13 OV2 12 OV1 11 VME 10 OV3 9 OV4 1 2006/7/5 Agamem Microelectronics Inc.AA87222AP ___________________________________________________________ PRELIMINARY CCD VERTICAL DRIVER PIN DESCRIPTION Symbol Pin No.POWER VHH 16 GND 1 VEE 14 VME 11 INPUT SIGNAL XSUB 2

Features

S z 3 levels of output voltage, 15V, 0V and -8.5V z 3.3V / 5V input voltage.
