IAM-91563, IAM-915, 0.8-6 GHz 3V Downconverter

www.DataSheet4U.com 0.8 * 6 GHz 3 V Downconverter Technical Data IAM-91563 .
Hewlett-Packard’s IAM-91563 is an economical 3V GaAs MMIC mixer used for frequency down-conversion.

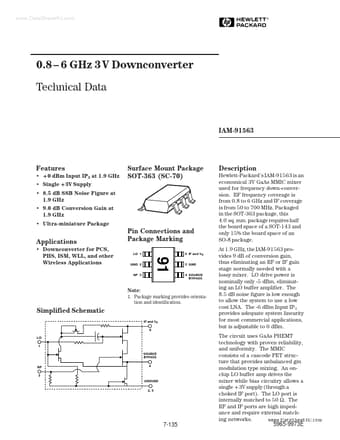

datasheet Preview Page 1 from Datasheet4u.com

IAM-915-63.pdf

IAM-91563 Datasheet Preview — This datasheet PDF includes multiple part numbers: IAM-91563, IAM-915. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IAM-91563, IAM-915

Manufacturer:

Agilent(Hewlett-Packard)

File Size:

221.56 KB

Description:

0.8-6 GHz 3V Downconverter

Note:

This datasheet PDF includes multiple part numbers: IAM-91563, IAM-915.
Please refer to the document for exact specifications by model.

Features

* +0 dBm Input IP3 at 1.9 GHz
* Single +3V Supply
* 8.5 dB SSB Noise Figure at 1.9 GHz
* 9.0 dB Conversion Gain at 1.9 GHz

Applications

* but is adjustable to 0 dBm. The circuit uses GaAs PHEMT technology with proven reliability, and uniformity. The MMIC consists of a cascode FET structure that provides unbalanced gm modulation type mixing. An onchip LO buffer amp drives the mixer while bias circuitry allows a single +3V supply (thro
