MCL4148 SMD Rectifying Diode

Description

MCL4148 SMD Rectifying Diode Primary characteristics Parameter Value Unit VRM 100 V IF(AV) 200 mA Case dimensions .
only.

📥 Download Datasheet

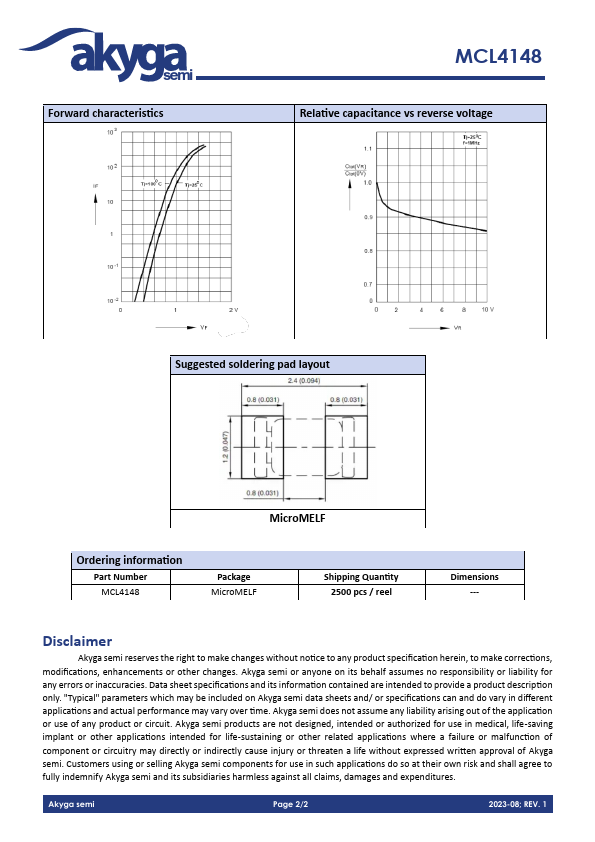

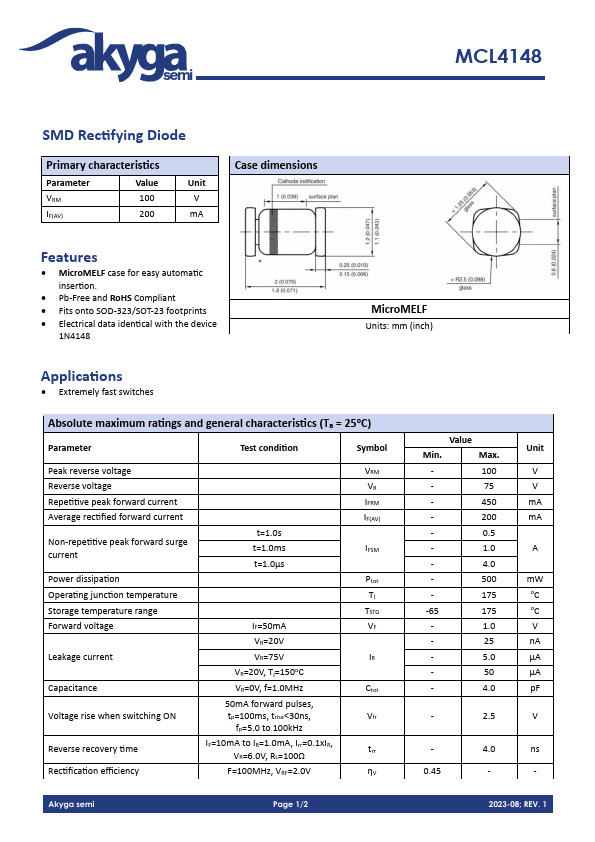

MCL4148 Datasheet Preview — Preview of MCL4148 PDF

Datasheet Specifications

Part number: MCL4148
Manufacturer: Akyga
File Size: 268.45 KB
Datasheet: MCL4148-Akyga.pdf
Description: SMD Rectifying Diode

Features

* MicroMELF case for easy automatic insertion.
* Pb-Free and RoHS Compliant
* Fits onto SOD-323/SOT-23 footprints

Applications

* Extremely fast switches Absolute maximum ratings and general characteristics (Ta = 25oC) Parameter Test condition Symbol Peak reverse voltage VRM Reverse voltage VR Repetitive peak forward current IFRM Average rectified forward current IF(AV) t=1.0s Non-repetitive peak forwar
