AFE0504A Datasheet, Array, Alfa-MOS

AFE0504A Features

  • Array Application 4 channels of ESD protection Provides ESD protection to IEC61000-4-2 level 4 ±30 KV air discharge ±30 KV contact discharge Channel I/O to GND capacitance: 5.0pF(Max) Chann

PDF File Details

Part number:

AFE0504A

Manufacturer:

Alfa-MOS

File Size:

206.89kb

Download:

📄 Datasheet

Description:

Esd protection array. The AFE0504A is a 4-channel ultra low capacitance rail clamp ESD protection diodes array. Each channel consists of a pair of ESD diod

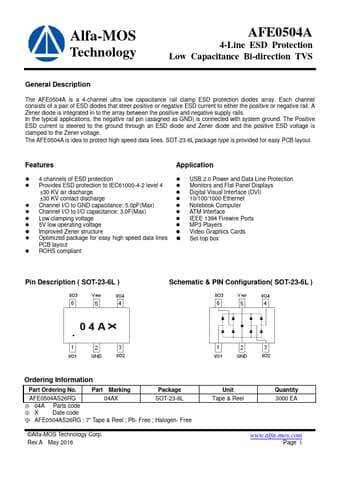

Datasheet Preview: AFE0504A 📥 Download PDF (206.89kb)
Page 2 of AFE0504A Page 3 of AFE0504A

AFE0504A Application

  • Applications the negative rail pin (assigned as GND) is connected with system ground. The Positive ESD current is steered to the ground through an
