AFE0505 Datasheet, Array, Alfa-MOS

AFE0505 Features

  • Array Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Small package saves board space

PDF File Details

Part number:

AFE0505

Manufacturer:

Alfa-MOS

File Size:

444.21kb

Download:

📄 Datasheet

Description:

Esd protection array. AFE0505 are designed by bi-direction TVS diode, to protect high speed data interfaces. This product has been specifically designed to

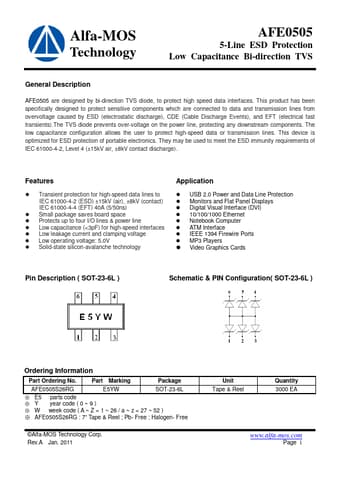

Datasheet Preview: AFE0505 📥 Download PDF (444.21kb)
Page 2 of AFE0505 Page 3 of AFE0505
