AFE031

Powerline Communications Analog Front-End

AFE031 Features

* 1 Integrated powerline driver with thermal and overcurrent protection

* Conforms to EN50065-1

* PRIME certified

* Large output swing: 12 VPP at 1.5 A (15-V supply)

* Low power consumption: 15 mW (receive mode)

* Programmable Tx and Rx filters

AFE031 General Description

The AFE031 is a low-cost, integrated, powerline communications (PLC) analog front-end (AFE) device that is capable of capacitive- or transformer-coupled connections to the powerline while under the control of a DSP or microcontroller. It is ideal for driving lowimpedance lines that require up to 1.5.

AFE031 Datasheet (2.30 MB)

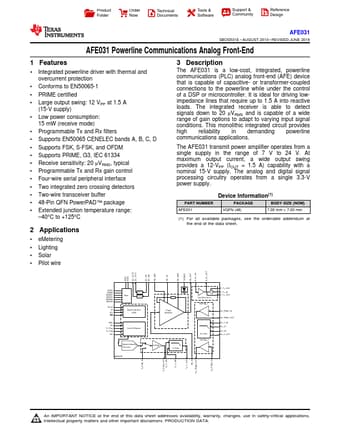

Preview of AFE031 PDF

Datasheet Details

Part number:

AFE031

Manufacturer:

Texas Instruments ↗

File Size:

2.30 MB

Description:

Powerline communications analog front-end.
Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design AFE031 SBOS531E

* AUGUST 2010
