AFE0514P Datasheet, Array, Alfa-MOS

AFE0514P Features

  • Array 4 channels of ESD protection Provides ESD protection to IEC61000-4-2 level 4 ±15 KV air discharge ± 8 KV contact discharge Channel I/O to GND capacitance: 0.4pF(Max) Channel I/O to I/O

PDF File Details

Part number:

AFE0514P

Manufacturer:

Alfa-MOS

File Size:

569.52kb

Download:

📄 Datasheet

Description:

Ultra low capacitance 4-channel esd protection array. The AFE0514P is a 4-channel ultra low capacitance rail clamp ESD protection diodes array. Each channel consists of a pair of ESD diod

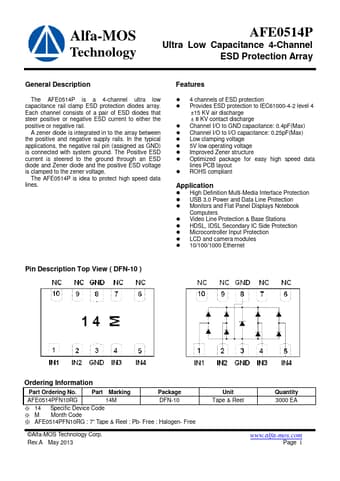

Datasheet Preview: AFE0514P 📥 Download PDF (569.52kb)
Page 2 of AFE0514P Page 3 of AFE0514P

AFE0514P Application

  • Applications the negative rail pin (assigned as GND) is connected with system ground. The Positive ESD current is steered to the ground through an
