AFE0514 Datasheet, Array, Alfa-MOS

AFE0514 Features

• Array Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Small package saves board space

PDF File Details

Part number:

AFE0514

Manufacturer:

Alfa-MOS

File Size:

490.95kb

Download:

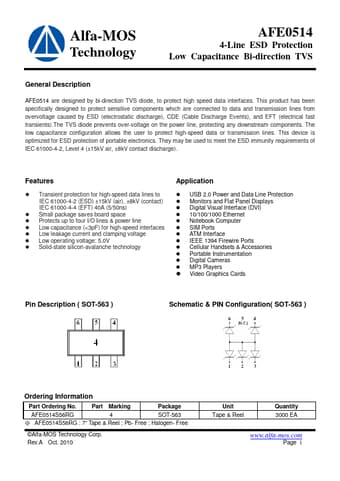

📄 Datasheet

Description:

Esd protection array. AFE0514 are designed by bi-direction TVS diode, to protect high speed data interfaces. This product has been specifically designed to
