A1351 Datasheet - Allegro MicroSystems

A1351 High Precision Linear Hall Effect Sensor IC

TheA1351 device is a high precision, programmable linear Hall effect sensor IC with a pulse width modulated (PWM) output. The duty cycle, D, of the PWM output signal is proportional to an applied magnetic field. The A1351 device converts an analog signal from its internal Hall element to a digitally.

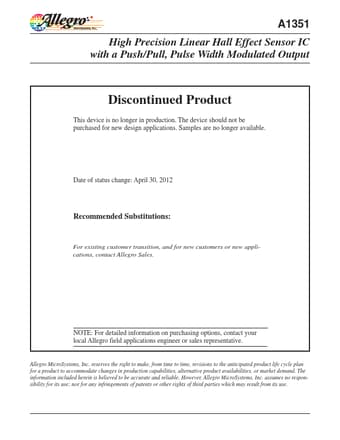

A1351 High Precision Linear Hall Effect Sensor IC with a Push/Pull, Pulse Width Modulated Output Discontinued Product This device is no longer in production. The device should not be purchased for new design applications. Samples are no longer available. Date of status change: April 30, 2012 Recommended Substitutions: For existing customer transition, and for new customers or new applications, contact Allegro Sales. NOTE: For detailed information on purchasing options, contact your local Allegro.

A1351 Features

* Pulse width modulated (PWM) output provides increased noise immunity compared to an analog output

* 1 mm case thickness provides greater coupling for current sensing applications

* Push/pull output

* Customer-programmable offset and sensitivity

* Factory-pro

A1351 Datasheet (689.97 KB)

Preview of A1351 PDF
A1351 Datasheet Preview Page 2 A1351 Datasheet Preview Page 3

Datasheet Details

Part number:

A1351

Manufacturer:

Allegro MicroSystems

File Size:

689.97 KB

Description:

High precision linear hall effect sensor ic.
