A1359 - Factory-Programmed Dual Output Linear Hall-Effect Sensor

Product Overview

Allegro MicroSystems

Datasheet Details

Part number	A1359
Manufacturer	Allegro MicroSystems
File Size	1.27 MB
Description	Factory-Programmed Dual Output Linear Hall-Effect Sensor
Datasheet	A1359 Datasheet

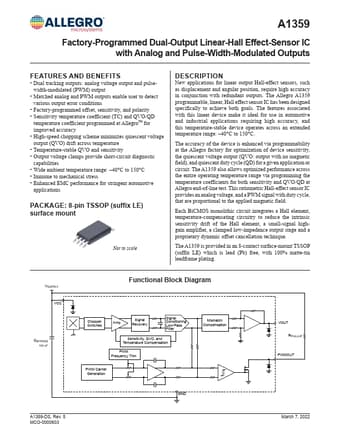

Additional preview pages of the A1359 datasheet.

Product details

Description

New applications for linear output Hall-effect sensors, such as displacement and angular position, require high accuracy in conjunction with redundant outputs.

Features

Dual tracking outputs: analog voltage output and pulsewidth-modulated (PWM) output.
Matched analog and PWM outputs enable user to detect various output error conditions.
Factory-programmed offset, sensitivity, and polarity.
Sensitivity temperature coefficient (TC) and QVO/QD temperature coefficient programmed at Allegro™ for improved accuracy.
High-speed chopping scheme minimizes quiescent voltage output (QVO) drift across temperature.
Tempe.
