ACS755KCB-150-PSF - Current Sensor

Product Overview

Allegro MicroSystems

Datasheet Details

Part number	ACS755KCB-150-PSF
Manufacturer	Allegro MicroSystems
File Size	304.56 KB
Description	Current Sensor
Datasheet	ACS755KCB-150-PSF Datasheet

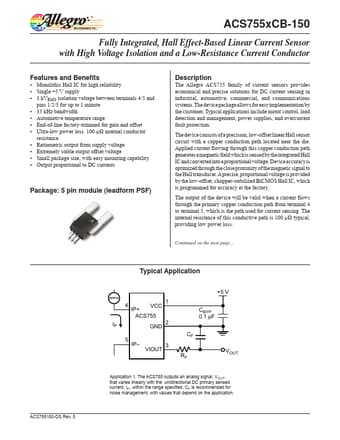

Additional preview pages of the ACS755KCB-150-PSF datasheet.

Product details

Description

The Allegro ACS755 family of current sensors provides economical and precise solutions for DC current sensing in industrial, automotive, commercial, and communications systems.

Features

Monolithic Hall IC for high reliability.
Single +5 V supply.
3 kVRMS isolation voltage between terminals 4/5 and pins 1/2/3 for up to 1 minute.
35 kHz bandwidth.
Automotive temperature range.
End-of-line factory-trimmed for gain and offset.
Ultra-low power loss: 100 μΩ internal conductor resistance.
Ratiometric output from supply voltage.
Extremely stable output offset voltage.
Small package size, with easy mounting capability.
Output propo.
