ACS755LCB-050-PSF

Hall Effect-Based Linear Current Sensor

ACS755LCB-050-PSF Features

* ▪ Monolithic Hall IC for high reliability ▪ Single +5 V supply ▪ 3 kVRMS isolation voltage between terminals 4/5 and pins 1/2/3 for up to 1 minute ▪ 18 kHz bandwidth ▪ Automotive temperature range ▪ End-of-line factory-trimmed for gain and offset ▪ Ultra-low power loss: 100 μΩ internal conductor res

ACS755LCB-050-PSF General Description

The Allegro ACS755 family of current sensor ICs provides economical and precise solutions for DC current sensing in industrial, automotive, commercial, and communications systems. The device package allows for easy implementation by the customer. Typical applications include motor control, load dete.

ACS755LCB-050-PSF Datasheet (310.28 KB)

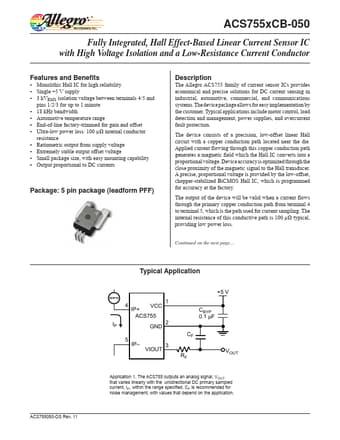

Preview of ACS755LCB-050-PSF PDF

Datasheet Details

Part number:

ACS755LCB-050-PSF

Manufacturer:

Allegro MicroSystems

File Size:

310.28 KB

Description:

Hall effect-based linear current sensor.
