ACS755LCB-100-PFF Datasheet - Allegro MicroSystems

ACS755LCB-100-PFF Current Sensor

Current Sensor: ACS755xCB-100 5 Package CB-PFF 4 1 23 5 Package CB-PSF 4 1 23 Package CB-PSS 5 4 The Allegro ACS75x family of current sensors provides economical and precise solutions for current sensing in industrial, automotive, commercial, and communications systems. The device package allows for easy implementation by the customer. Typical applications include load detection and management, power supplies, and overcurrent fault protection. The device consists of a precision, low-off.

ACS755LCB-100-PFF Features

* and Benefits

* Monolithic Hall IC for high reliability

* Single +5 V supply

* 3 kVRMS isolation voltage between terminals 4/5 and pins 1/2/3

* 27 kHz bandwidth

* Automotive temperature range

* End-of-line factory-trimmed for gain and offset

* Ul

ACS755LCB-100-PFF-AllegroMicroSystems.pdf

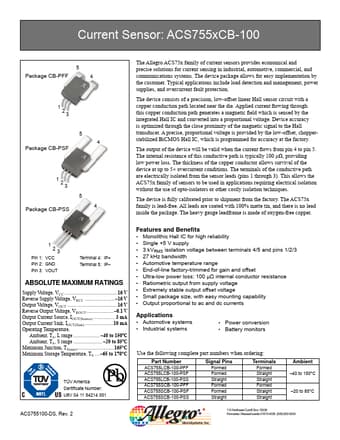

Preview of ACS755LCB-100-PFF PDF
ACS755LCB-100-PFF Datasheet Preview Page 2 ACS755LCB-100-PFF Datasheet Preview Page 3

Datasheet Details

Part number:

ACS755LCB-100-PFF

Manufacturer:

Allegro MicroSystems

File Size:

430.52 KB

Description:

Current sensor.
