ACS755LCB-100-PSF, ACS755LCB-100-PFF Current Sensor

ACS755LCB-100-PSF Description

Current Sensor: ACS755xCB-100 5 Package CB-PFF 4 1 23 5 Package CB-PSF 4 1 23 Package CB-PSS 5 4 The Allegro ACS75x family of current sensors.

ACS755LCB-100-PSF Features

* and Benefits
* Monolithic Hall IC for high reliability
* Single +5 V supply
* 3 kVRMS isolation voltage between terminals 4/5 and pins 1/2/3
* 27 kHz bandwidth
* Automotive temperature range
* End-of-line factory-trimmed for gain and offset
* Ul

ACS755LCB-100-PSF Applications

* include load detection and management, power supplies, and overcurrent fault protection. The device consists of a precision, low-offset linear Hall sensor circuit with a copper conduction path located near the die. Applied current flowing through this copper conduction path generates a magnetic field

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACS755LCB-100-PSF, ACS755LCB-100-PFF. Please refer to the document for exact specifications by model.

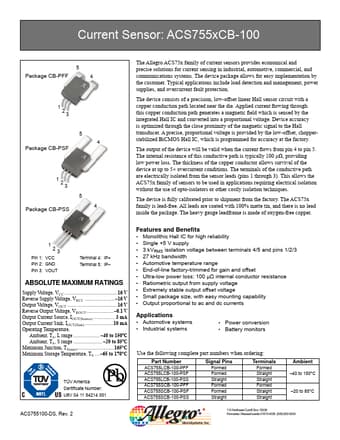

datasheet Preview Page 2 datasheet Preview Page 3
