ACS755LCB-050-PFF

Hall Effect-Based Linear Current Sensor

ACS755LCB-050-PFF Features

* ▪ Monolithic Hall IC for high reliability ▪ Single +5 V supply ▪ 3 kVRMS isolation voltage between terminals 4/5 and pins 1/2/3 for up to 1 minute ▪ 18 kHz bandwidth ▪ Automotive temperature range ▪ End-of-line factory-trimmed for gain and offset ▪ Ultra-low power loss: 100 μΩ internal conductor res

ACS755LCB-050-PFF General Description

The Allegro ACS755 family of current sensor ICs provides economical and precise solutions for DC current sensing in industrial, automotive, commercial, and communications systems. The device package allows for easy implementation by the customer. Typical applications include motor control, load dete.

ACS755LCB-050-PFF Datasheet (310.28 KB)

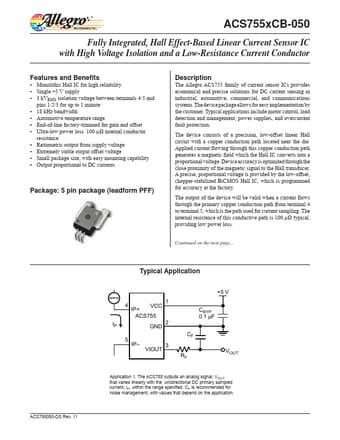

Preview of ACS755LCB-050-PFF PDF

Datasheet Details

Part number:

ACS755LCB-050-PFF

Manufacturer:

Allegro MicroSystems

File Size:

310.28 KB

Description:

Hall effect-based linear current sensor.

📁 Related Datasheet

ACS755LCB-050-PSF - Hall Effect-Based Linear Current Sensor (Allegro MicroSystems)
ACS755xCB-050 Fully Integrated, Hall Effect-Based Linear Current Sensor IC with High Voltage Isolation and a Low-Resistance Current Conductor Feature.

ACS755LCB-050-PSS - Hall Effect-Based Linear Current Sensor (Allegro MicroSystems)
ACS755xCB-050 Fully Integrated, Hall Effect-Based Linear Current Sensor IC with High Voltage Isolation and a Low-Resistance Current Conductor Feature.

ACS755LCB-100-PFF - Current Sensor (Allegro MicroSystems)
Current Sensor: ACS755xCB-100 5 Package CB-PFF 4 1 23 5 Package CB-PSF 4 1 23 Package CB-PSS 5 4 The Allegro ACS75x family of current sensors.

ACS755LCB-100-PSF - Current Sensor (Allegro MicroSystems)
Current Sensor: ACS755xCB-100 5 Package CB-PFF 4 1 23 5 Package CB-PSF 4 1 23 Package CB-PSS 5 4 The Allegro ACS75x family of current sensors.

ACS755LCB-100-PSS - Current Sensor (Allegro MicroSystems)
Current Sensor: ACS755xCB-100 5 Package CB-PFF 4 1 23 5 Package CB-PSF 4 1 23 Package CB-PSS 5 4 The Allegro ACS75x family of current sensors.

ACS755KCB-150-PSF - Current Sensor (Allegro MicroSystems)
ACS755xCB-150 Fully Integrated, Hall Effect-Based Linear Current Sensor with High Voltage Isolation and a Low-Resistance Current Conductor Features a.

ACS755KCB-150-PSS - Current Sensor (Allegro MicroSystems)
ACS755xCB-150 Fully Integrated, Hall Effect-Based Linear Current Sensor with High Voltage Isolation and a Low-Resistance Current Conductor Features a.

ACS755SCB-050-PFF - Hall Effect-Based Linear Current Sensor (Allegro MicroSystems)
ACS755xCB-050 Fully Integrated, Hall Effect-Based Linear Current Sensor IC with High Voltage Isolation and a Low-Resistance Current Conductor Feature.
