ATS632LSA - ZERO-SPEED/ SELF-CALIBRATING/ NON-ORIENTED/ HALL-EFFECT GEAR-TOOTH SENSOR

Allegro MicroSystems

The ATS632LSA by Allegro MicroSystems is a ZERO-SPEED/ SELF-CALIBRATING/ NON-ORIENTED/ HALL-EFFECT GEAR-TOOTH SENSOR. Below is the official datasheet preview.

📥 Download Datasheet

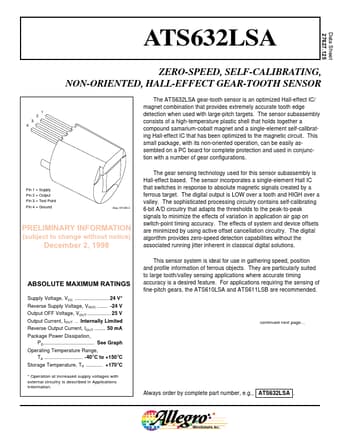

ATS632LSA ZERO-SPEED/ SELF-CALIBRATING/ NON-ORIENTED/ HALL-EFFECT GEAR-TOOTH SENSOR by Allegro MicroSystems - Datasheet Preview — Official preview page of the **ATS632LSA** ZERO-SPEED/ SELF-CALIBRATING/ NON-ORIENTED/ HALL-EFFECT GEAR-TOOTH SENSOR datasheet (Allegro MicroSystems).

Datasheet Details

Part number	ATS632LSA
Manufacturer	Allegro MicroSystems
File Size	118.67 KB
Description	ZERO-SPEED/ SELF-CALIBRATING/ NON-ORIENTED/ HALL-EFFECT GEAR-TOOTH SENSOR
Datasheet	ATS632LSA_AllegroMicroSystems.pdf
Additional preview pages of the ATS632LSA datasheet.

ATS632LSA Product details

Description

Min. Typ. Max. ±0.25 Units mm mm mm mm mm TARGET DIMENSIONS Type Reference Target Characterization Target #1 Characterization Target #2 Diameter (D o) 84 mm 84 mm 35 mm Thickness (F) 16 mm 16 mm 7 mm Tooth Width (T) 9 mm 1 tooth, 180° 1 tooth, 180° Valley Width (PC - T) 13 mm Valley Depth (ht ) 5 mm 5 mm 6 mm NOTE: Timing accuracy data is taken by recalibrating the unit at each a

Features

s s s s s s s Non-Oriented Installation Fully Optimized Gear-Tooth Sensors Zero-Speed Digital Output Representing Target Profile Large Operating Air Gaps Extremely Low Timing Accuracy Drift with Temperature Correct First-Edge Detection Self-Calibrating Circuitry with Integrated Offset Cancellation 6-bit A/D Converters to Capture Peaks Thresholds Proportional to Peak-to-Peak Signals Optimized Magnetic Circuit Single-Chip Sensing IC for High Reliability.
