ATS632LSC ZERO-SPEED/ SELF-CALIBRATING/ NON-ORIENTED/ HALL-EFFECT GEAR-TOOTH SENSOR

Min. * * * * * Typ. 5.0 5.0 5.0 5.0 * Max. * * * * ±0.25 Units mm mm mm mm mm TARGET DIMENSIONS Type Reference Target Characterization Target #1 Characterization Target #2 Diameter (D o) 84 mm 84 mm 35 mm Thickness (F) .

ATS632LSC HALL-EFFECT GEAR-TOOTH SENSOR SUBASSEMBLY ATS632LSC The ATS632LSC gear-tooth sensor is an optimized Hall-effect IC/ magnet combination that provides tooth/valley recognition and extremely accurate tooth edge detection when used with large-pitch targets. The sensor subassembly consists of a high-temperature plastic shell that holds together a compound samarium-cobalt magnet, a single-element self-calibrating Hall-effect IC that has been optimized to the magnetic circuit, and a voltage .

ATS632LSC Features

* s s s s s s s s Non-Oriented Installation Fully Optimized Gear-Tooth Sensors Single-Chip Sensing IC for High Reliability Zero-Speed Digital Output Representing Target Profile Extremely Low Timing Accuracy Drift with Temperature Large Operating Air Gaps Optimized Magnetic Circuit Self-Calibrating Cir

ATS632LSC Datasheet (75.93 KB)

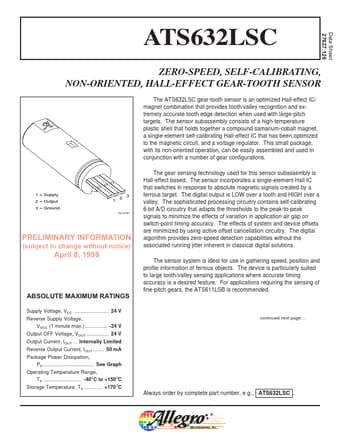

ATS632LSC Datasheet Preview — Preview of ATS632LSC PDF

Datasheet Details

Part number:

ATS632LSC

Manufacturer:

Allegro MicroSystems

File Size:

75.93 KB

Description:

Zero-speed/ self-calibrating/ non-oriented/ hall-effect gear-tooth sensor.
