ATS642LSH

Peak-Detecting Gear Tooth Sensor

ATS642LSH Features

* ▪ Running mode calibration for continuous optimization ▪ Single chip IC for high reliability ▪ Internal current regulator for 2-wire operation ▪ Small mechanical size (8 mm diameter × 5.5 mm depth) ▪ Precise duty cycle signal over operating temperature range ▪ Large operating air gaps ▪ Automatic Ga

ATS642LSH General Description

The ATS642LSH is an optimized Hall effect sensing integrated circuit and magnet combination that provides a user-friendly solution for true zero-speed digital gear-tooth sensing in twowire applications. The sensor consists of a single-shot molded plastic package that includes a samarium cobalt magne.

ATS642LSH Datasheet (649.03 KB)

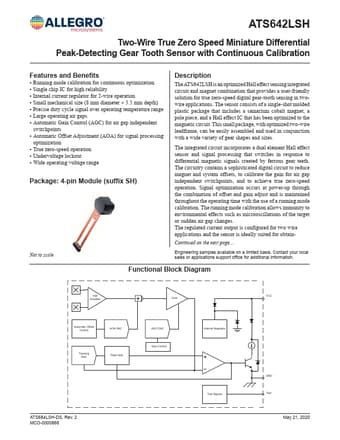

Preview of ATS642LSH PDF

Datasheet Details

Part number:

ATS642LSH

Manufacturer:

Allegro MicroSystems

File Size:

649.03 KB

Description:

Peak-detecting gear tooth sensor.
