A5950

DC Motor Driver

A5950 Features

* Overcurrent protection (OCP)

* Motor lead short-to-ground protection

* Motor lead short-to-battery protection

* Motor short protection

* Low-power standby mode

* Fault output

* Adjustable current limit option

* Current-to-voltage outp

A5950 General Description

Designed for pulse-width-modulated (PWM) control of DC motors, the A5950 is capable of peak output currents up to ±3 A and operating voltages up to 40 V. Input terminals are provided for use in controlling the speed and direction of a DC motor with externally applied PWM control signals. Internal sy.

A5950 Datasheet (916.17 KB)

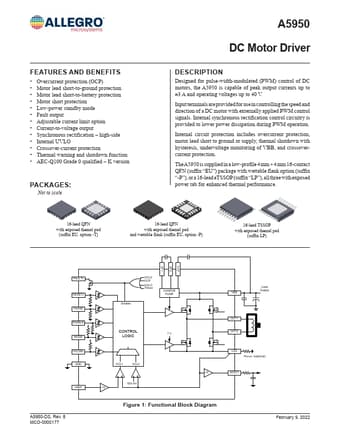

Preview of A5950 PDF

Datasheet Details

Part number:

A5950

Manufacturer:

Allegro

File Size:

916.17 KB

Description:

Dc motor driver.
