A5957

Full-Bridge PWM Gate Driver

A5957 Features

* PHASE/ENABLE/SLEEPn control logic

* Overcurrent indication

* Adjustable off-time and blank-time

* Adjustable current limit

* Adjustable gate drive

* Synchronous rectification

* Internal UVLO

* Crossover-current protection

* MO

A5957 General Description

Designed for pulse-width-modulated (PWM) control of DC motors, the A5957 is capable of 50 V operation and provides gate drive for an all N-channel external MOSFET bridge. Input terminals are provided for use in controlling the speed and direction of a DC motor with externally applied PWM control sig.

A5957 Datasheet (493.66 KB)

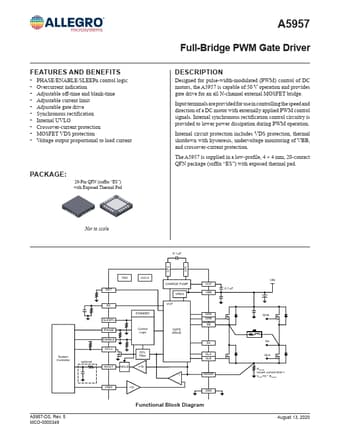

Preview of A5957 PDF

Datasheet Details

Part number:

A5957

Manufacturer:

Allegro

File Size:

493.66 KB

Description:

Full-bridge pwm gate driver.
