AON2411 - 12V P-Channel MOSFET

The AON2411 by Alpha & Omega Semiconductors is a 12V P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

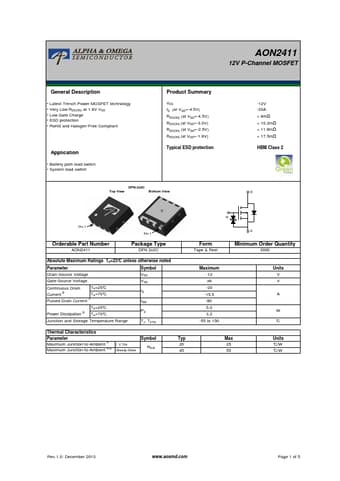

Official preview page of the AON2411 12V P-Channel MOSFET datasheet (Alpha & Omega Semiconductors).

Datasheet Details

Part number AON2411
Manufacturer Alpha & Omega Semiconductors
File Size 253.99 KB
Description 12V P-Channel MOSFET
Datasheet download datasheet AON2411-AlphaOmegaSemiconductors.pdf
Additional preview pages of the AON2411 datasheet.

AON2411 Product details

Description

Latest Trench Power MOSFET technology Very Low RDS(ON) at 1.8V VGS Low Gate Charge ESD protection RoHS and Halogen-Free Compliant Application Battery path load switch System load switch Product Summary VDS ID (at VGS=-4.5V) RDS(ON) (at VGS=-4.5V) RDS(ON) (at VGS=-3.0V) RDS(ON) (at VGS=-2.5V) RDS(ON) (at VGS=-1.8V) Typical ESD protection DFN 2x2C Top View Bottom View -12V -20A < 8mΩ < 10.2mΩ < 11.6mΩ < 17.5mΩ HBM Class 2 D
