AON3820 - Dual N-Channel MOSFET

The AON3820 by Alpha & Omega Semiconductors is a Dual N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the AON3820 Dual N-Channel MOSFET datasheet (Alpha & Omega Semiconductors).

Datasheet Details

Part number AON3820
Manufacturer Alpha & Omega Semiconductors
File Size 328.97 KB
Description Dual N-Channel MOSFET
Datasheet download datasheet AON3820-AlphaOmegaSemiconductors.pdf

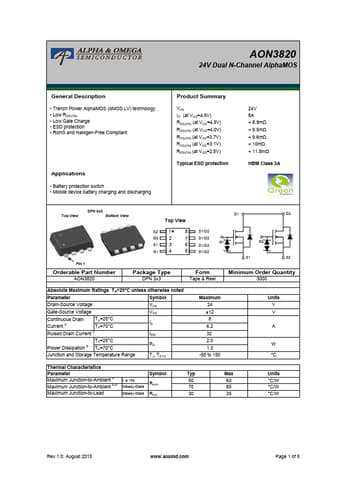

Additional preview pages of the AON3820 datasheet.

AON3820 Product details

Description

Trench Power AlphaMOS (αMOS LV) technology Low RDS(ON) Low Gate Charge ESD protection RoHS and Halogen-Free Compliant Applications Battery protection switch Mobile device battery charging and discharging Product Summary VDS ID (at VGS=4.5V) RDS(ON) (at VGS=4.5V) RDS(ON) (at VGS=4.0V) RDS(ON) (at VGS=3.7V) RDS(ON) (at VGS=3.1V) RDS(ON) (at VGS=2.5V) Typical ESD protection 24V 8A < 8.9mΩ < 9.5mΩ < 9.6mΩ < 10mΩ < 11.8mΩ HBM Cla
