AON6426L Datasheet - Alpha & Omega Semiconductors

AON6426L N-Channel MOSFET

AON6426L Features

* VDS (V) = 30V ID = 24A RDS(ON) < 5.5mΩ RDS(ON) < 7.5mΩ (VGS = 10V) (VGS = 10V) (VGS = 4.5V) - RoHS Compliant - Halogen Free 100% UIS Tested! 100% R g Tested! Top View Fits SOIC8 footprint ! S S S G D D D D G D DFN5X6 Absolute Maximum Ratings TA=25° C unless otherwise noted Parameter Symbol Drai

AON6426L_AlphaOmegaSemiconductors.pdf

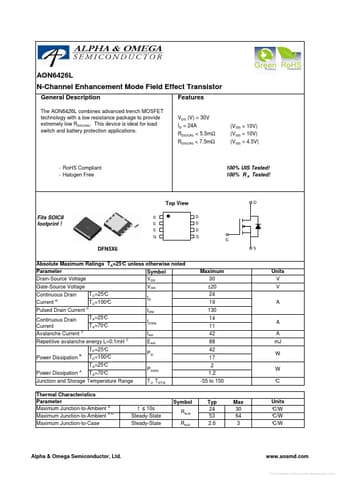

Preview of AON6426L PDF
AON6426L Datasheet Preview Page 2 AON6426L Datasheet Preview Page 3

Datasheet Details

Part number:

AON6426L

Manufacturer:

Alpha & Omega Semiconductors

File Size:

159.47 KB

Description:

N-channel mosfet.
