AON6500

N-Channel MOSFET

AON6500 General Description



* Latest Trench Power AlphaMOS (αMOS LV) technology

* Very Low RDS(on) at 4.5VGS

* Low Gate Charge

* High Current Capability

* RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 30V 370A < 0.95mW .

AON6500 Datasheet (411.63 KB)

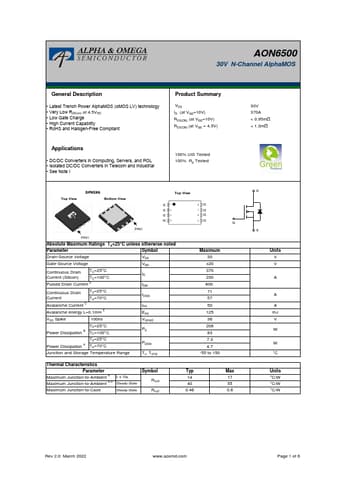

Preview of AON6500 PDF

Datasheet Details

Part number:

AON6500

Manufacturer:

Alpha & Omega Semiconductors

File Size:

411.63 KB

Description:

N-channel mosfet.
